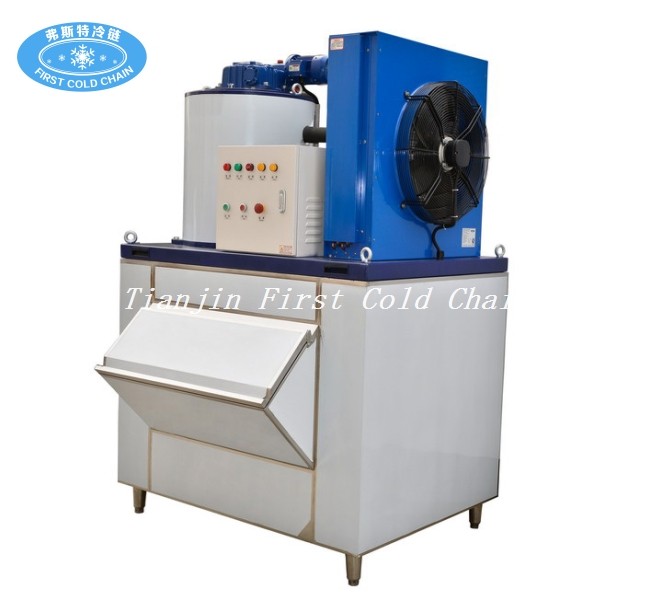

China High quality ice maker machine 1T/24h for meat or seafood processing

Ice maker machine Product Description

1. Higher refrigeration efficiency and lower loss of refrigeration capacity

Automatic flake ice machine adopts the latest vertical evaporator with inner helix ice cutter. In the process of ice making, the water distribution device in ice maker sprays water even on the internal surface of ice maker to frozen in a short time. After ice formed, the helix ice cutter drops down and cut ice. In this method, it makes a full use of evaporator and increase the efficiency of ice making.

2.High quality, dry and non-caked
The thickness of flake ice which produced by automatic plate ice machine with vertical evaporator is about 1mm to 2mm. The ice shape is irregular flake ice and it has good mobility..

3.Simple structure and small land area
The series of ice flat has different kinds including fresh water type, seawater type, fixed cold source type, equip cold source by customer, and ice flat machine with cold room. And the daily capacity is ranges from 200kg to 60000kg. Customers can choose suitable machine according to site and different water quality. Compared to traditional ice making machine, it has advantage of small land area and low operation cost (no man for ice harvest).

Ice maker 1000kg/24h Parameters

Ice output：1000kg/24h

Ice bin capacity：400kg

Compressor：Denmark Danfoss

Ice machine size：1310*890*880mm

Ice bin size：1320*1250*110mm

Installation space：1320*1250*1980mm

G.W.：270kg

Standard power supply：3P/380V 50HZ

Total power：4.31 KW

Refrigerating capacity：6 KW

Refrigerant：R404A

Cooling type：Air cooling
